Fitting a 916-style Steering Damper
by Banoffee (SOURCE http://oldskoolsuzuki.info/ )

My slabby has a lively front end, so I've been wanting to fit a steering damper for ages. I even acquired the period Daytona fitting kit and damper however couldn't get that to work with my USD front end. So, seeing as I wasn't keen on modifying the frame to take a bolt-on side mounted damper  the only option left was a 916-style fitment. Seeing as I'm running an Ohlins rear shock, the damper had to be Ohlins to match of course!

Basic theory:
Whilst steering damper manufacturers don't list fitting kits for oldskool bikes, it's actually a simple matter of taking the measurements and then doing some research to find a suitable kit (or parts from several kits).

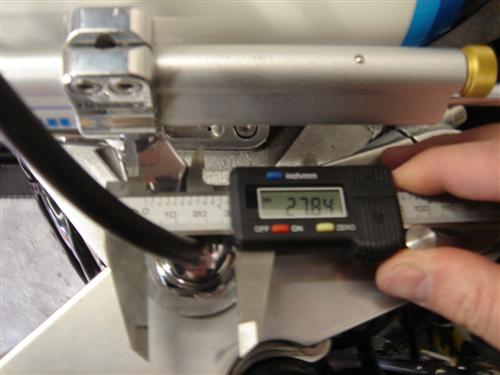

The measurements: (Note - some measurements are taken with internal vernier edges, some external. These are just shown to illustrate, you should of course check your own measurements carefully!)

The research:

I took a tape measure with me to bike meets, bike shops etc to measure up more modern bikes (with owners permissions of course when they were about!) and also bothered a few people selling kits on 'that auction site'.

My bike:
(750G with 400gk76a USD front end)

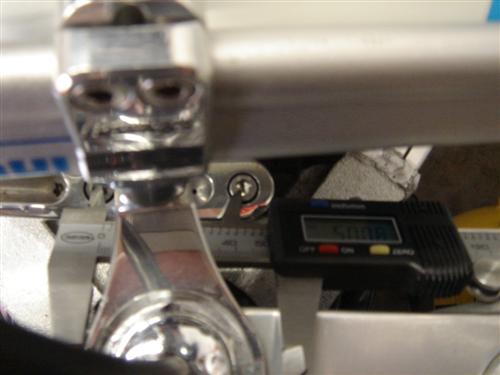

A: approx 50mm

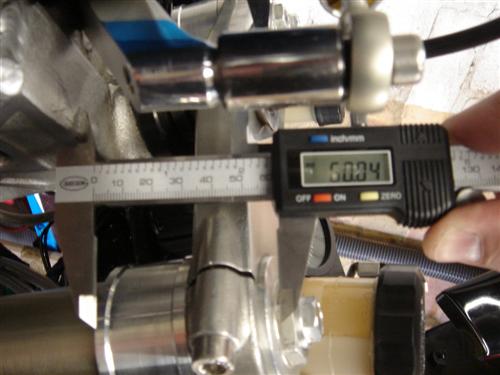

B: approx 60mm

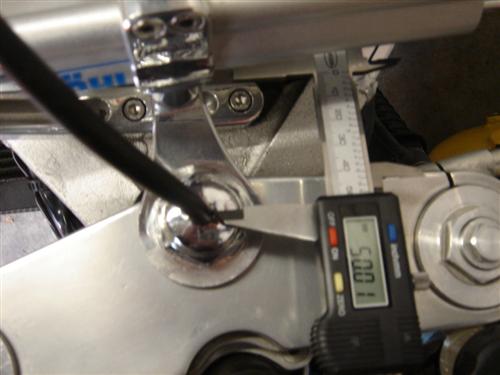

C: approx 50mm
D: approx 60mm


Things to note:

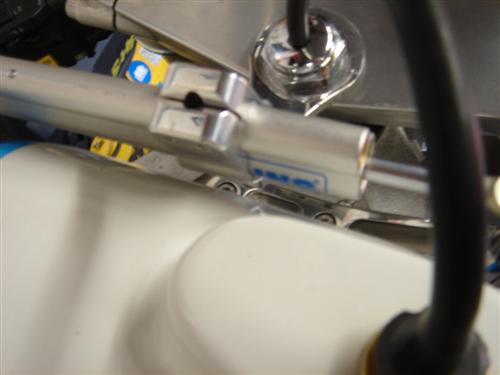

On my slabby, the damper is quite close (5-10mm) to the tank. Double, triple check all measurements to ensure it won't foul anwwhere.
Source the fitting kit before buying a damper so that you can mock up and modify if necessary. Setting a good search on 'that auction site' makes this surprisingly easy and cost-effective.
For the damper stroke, obviously err on the side of slightly longer but not too long as it will look unbalanced.

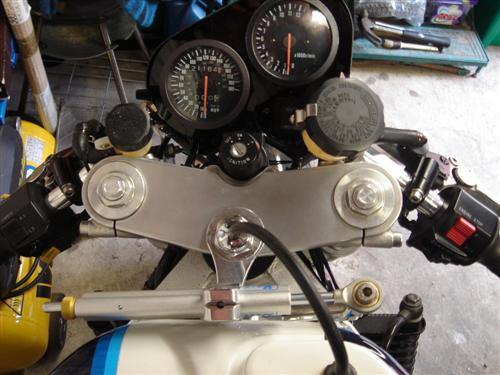

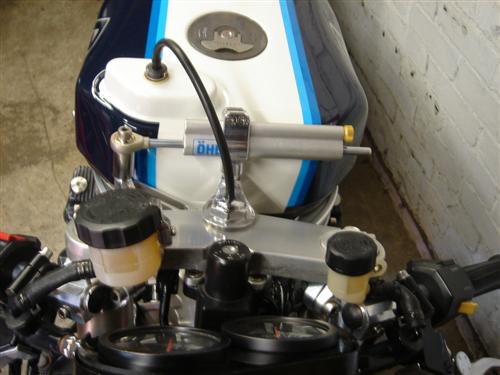

The result:

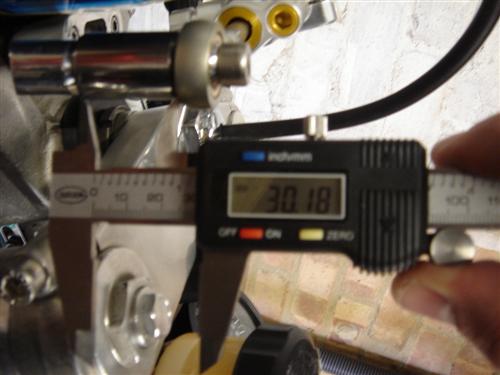

I picked up a 2000-model H*nda Firebl*de Harris fitting kit from 'that auction site' for a whopping £20. Measurements were near-perfect as a 1-2mm on the tank mount, etc. is just fine. Only slight drawback was 30mm lower 'B measurement' so I acquired a 30mm tubular spacer.
